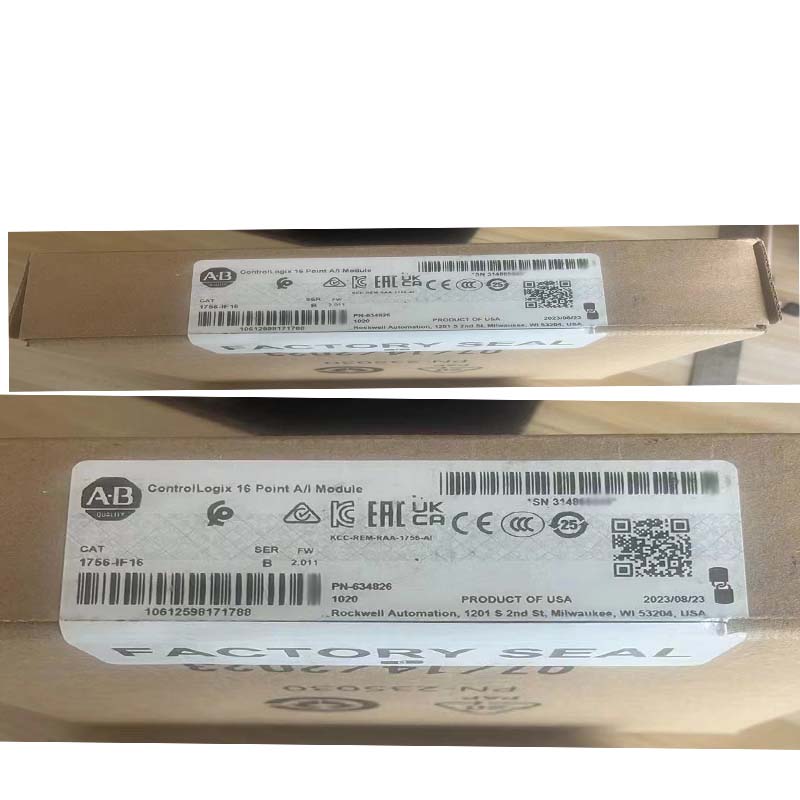

Name: 1756IF16 ControlLogix 16 Point AI Module Rockwell Controllogix HighPerformance Control Systems
Brand: Allen-Bradley
Price: 1 USD

Brand Name : Allen-Bradley

Model Number : 1756-IF16

Certification : Original

Place of Origin : Original

MOQ : 1

Price : Negotiation

Payment Terms : TT

Supply Ability : 100

Delivery Time : 3-4days

Packaging Details : carton box

Current draw @ 5.1V : 150 mA

Current draw @ 24V : 65mA

Total backplane power : 2.33W

Normal mode noise rejection : >80 dB @ 50/60 Hz(1)

Common mode noise rejection : >100 dB @ 50/60 Hz

Channel bandwidth : 15 Hz (-3 dB)(1)

Offset drift : 45 μV/°C

Module error : Voltage: 0.1% of range; Current: 0.3% of range

Contact Now

1756-IF16 ControlLogix 16 Point A/I Module Rockwell Controllogix High-Performance Control Systems for Your Business

Technical Specifications of 1756-IF16/A

Attribute	1756-IF16/A
Inputs	16 single ended, 8 differential or 4 differential (high speed)
Input range	±10V 0...10V 0...5V 0...20 mA
Resolution	320 μV/count (15 bits + sign bipolar) @ ±10.25V 160 μV/count (16 bits) @ 0...10.25V 80 μV/count (16 bits) @ 0...5.125V 0.32 μA/count (16 bits) @ 0...20.5 mA
Current draw @ 5.1V	150 mA
Current draw @ 24V	65 mA
Total backplane power	2.33W
Voltage and current ratings	Backplane: 5.1V DC, 150 mA max 24V DC, 65 mA max Input Voltage Range: -10...+10V Input Current Range: 4...20mA Limited to 100VA
Power dissipation	Voltage: 2.33 W Current: 4.00 W
Thermal dissipation	Voltage: 7.93 BTU/hr Current: 13.65 BTU/hr
Input impedance	Voltage: ≥10 MΩCurrent: 249 Ω

1756-IF16 ControlLogix 16 Point A/I Module Rockwell Controllogix High-Performance Control Systems
