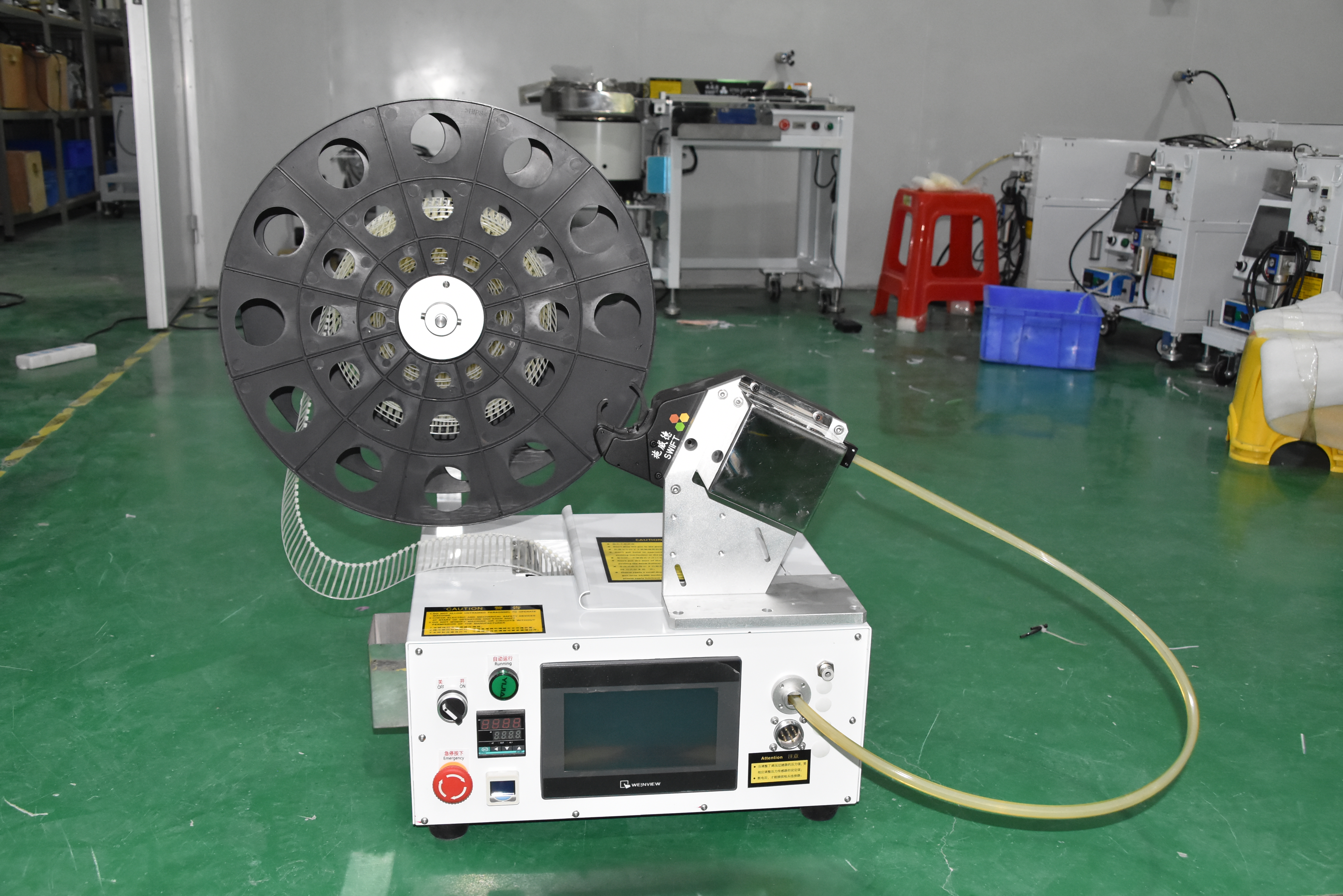

4,000pcs Cable Tie Strap Automatic Cable Tying System For Quickly Bundling
This machine is more suitable to use in the assembly line. Cable tie gun can be fixed in the end of line. Operator sits down and holds items with hands. It starts to thread, tighten and cut off cable ties once tread the pedal. Doing these actions takes only 1.3S.
SWT36120FC base data
| 1 | Description | Automatic cable tying system |
| 2 | Brand | SWIFT |
| 3 | Model | SWT36200FC |
| 4 | Features/advantages | 1. Using reel cable ties, 4,000pcs/reel 2. One petal to control all actions, including threading, tightening and cutting off cable ties. 3. With a cable tie gun that could be fixed in worktop. 4. Adapt different diameters items within ø42mm. 5. It is small and easy to move. |
| 5 | Cable ties info | Type | Cable Tie Strap/Reel cable ties |
| Model | C36200 |
| Overall width | 3.6mm |
| Overall length | 8inch (200mm) |
| Overall thickness | 1.2mm |
| Tensile strength | 15kg |
| Quantity/reel | 4,000pcs |
| 6 | Usage/per time in vibration bowl | 4,000pcs(without vibration bowl) |
| 7 | Product dimension | Max bundling Dia. | 43mm |
| Min bundling Dia. | 15mm |
| 8 | Bundling speed | 1.2S |
| 9 | Cable tie gun details | Out power | DC48V auto switch |
| Size | L29.9 * W24.0 * T14.9cm |
| Tension forces | Adjustable |
| 10 | Power supply | AC100V – 120V, , 50/60Hz; AC220V – 240V, 50/60Hz |
| 11 | Pneumatic pressure | 5kg/cm² |
| 12 | Max Power | 1,000W |
| 13 | Certificates | CE and RoHS |
SWT36200FC advantages
1. Small without vibration bowl.
2. One petal to control all actions, including threading, tightening and cutting off cable ties.
3. Adapt different diameters items within ø42mm.
4. You could set the quantity of cable ties bundled and the machine could record the actual number.
5. Tension forces are adjusted by turning knob.
6. Auto detecting jammed and dealing with by itself.
7. With temperature controlling system that could protect ties toughness.
Application
| Home appliance | Wire harness inside fan, air conditions, fridge |
| Auto industry | Auto oil pipes |
| Food industry | Bags sealed, the food label fixed, crab claws bundled |
| Offshore fishery | Fishing net |
| Moto coil industry | Fixing wires led out of motor stator, motor coil |
Packing details
| SWT36200FC Packing Details |
| Export wooden case | 1pcs |
| The host machine / wooden case | G.W./kg | 56kg |
| Packing Size/cm | L65 * W69 * H58cm |
| The vibration bowl / wooden case | G.W./kg | 0kg |
| Packing Size/cm | 0 |
| Total G.W. | 56kg( estimated) |
FAQ
1. How long does it take to bundle all cable ties?
There are 4,000pcs cable ties in reel. In theory, it takes about 1.5h.
2. What is MOQ?
MOQ: 1pcs.
3. What size does the machine use?
Reel cable ties: C36200, W3.6 * L200mm.
