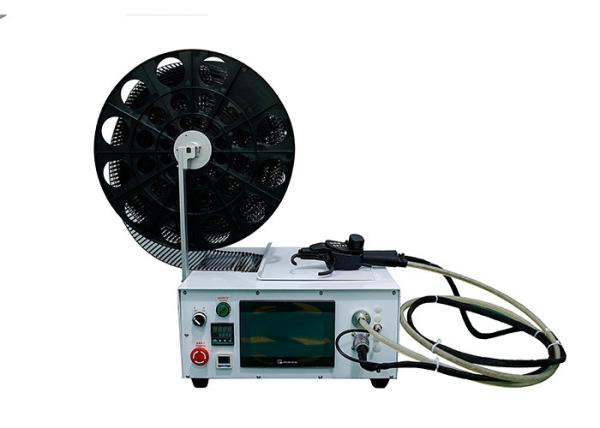

1.3S Bundle Speed Automatic Cable Tie Gun For Electric Wiring Cable Diameter 43mm
SWT36200HC is small automatic cable tie machine and uses reel cable ties. The cable tie gun can bundle wire cable daimeter up to 43mm.
SWT36200HC automatic cable tie tool features
1. The machine consists of the host machine, the gun tool and the reel cable ties.
2. Reel cable ties C36200, cable ties size W3.6mm * L200mm. There are 4000pcs nylon tie wraps in a reel.
3. Cable tie gun is handheld type. It is easy to hold and use.
4. Once touch the trigger, it would start to install cable ties. And the tie gun can bundle items' diameter 43mm.
5. The binding forces are adjsutable so you could make it loose or tight based on your requires.
6. With big touch screen, easy to manage.
SWT36200HC automatic cable tie machine specifications
| SWT36200HC |
| Cable ties size | W3.6 * L200mm | Voltage | AC220V,50/60Hz |
| Operation speed | 1.3S/cable tie | The gun V. | DC24V(auto switch) |
| Max banding Dia. for wire | Ø43mm | Power | 1,000W |
| Max banding Dia. for tube | Ø40mm | Pneumatic pressure | 5kg/cm² |
| Min banding Dia. | Ø20mm | Certificate | CE, RoHS |
| The bending forces | Adjustable | Application | binding wiring harness |
Packing
1/wooden case
Applications
Wire hareness, big tubes, explosive pack and plastic bags
FAQ
1. How can I know the machine is what I want?
SWIFT has different kinds of cable tie tool, such as the handheld type, the fixed type, professional using in motor coil and the desktop type. Pls contact us, I will give you suggestions.
2. How about the warranty?
Swift offers 1 year warranty and tech support forever.
3. What is MOQ?
MOQ: 1pcs.
