SWT25080M Rapid Bundle Silicone Hose 0.9S Zip Tie Tool

  • 1
  • 2
  • 3

Brand Name : SWIFT

Model Number : SWT25080M

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 100pcs/month

Delivery Time : 10-15days

Packaging Details : wooden cases

Name : Automatic cable tie gun

Model : SWT25080M

Bundle speed : 0.9S

Min banding Dia. : ø5mm

Max banding Dia. : ø10mm

Gun size : L331 * W282 * H189mm

Advantages : Replace workers and save cost

Appication : Bundle silicon hose fast or other small objects

Voltage : AC220V - AC240V, 50/60Hz

Pneumatic pressure : 5kg/cm²

Contact Now

0.9S Easy Automatically Operating Cable Tie Gun For Rapid Bundle Silicone Hose Of Soap Dispenser

Automatic cable tie gun machine SWT25080M is with a foot pedal. Once operator treads the pedal, the cable tie gun would automatically bundle, tighten and cut off. And the waste material after cutting would be collected into a box.

The bundle speed is 0.9S. One automatic cable tie machine can replace two workers at least.

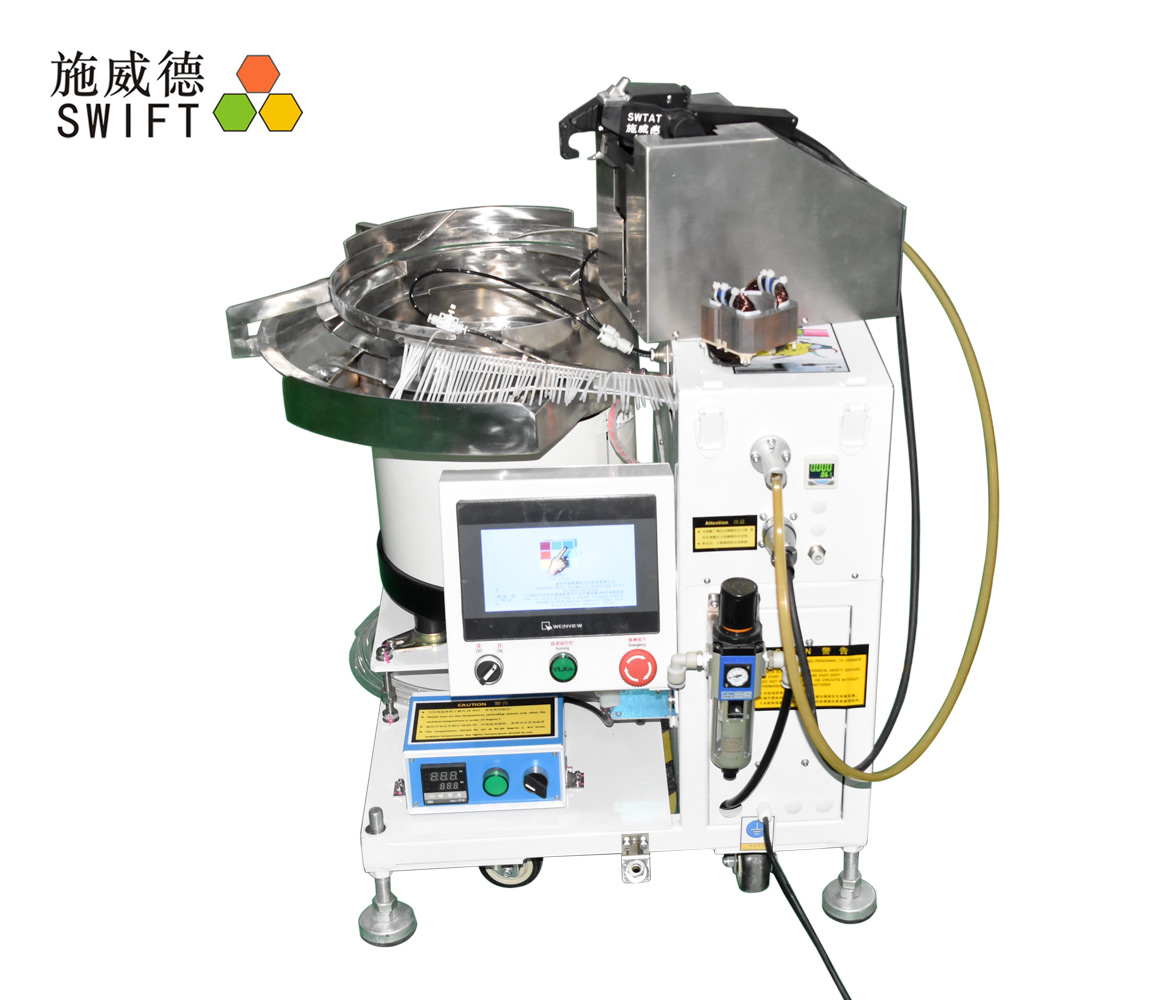

Automatic cable tie gun machine SWT25080M

Features

0.9S finishing bundling, tightening and cutting

The most effective and stable automatic cable tie gun solution.

The bundled objects’ diameters: ø5mm – ø10mm

Using nylon cable ties: W2.5 * L80mm

Fully alloy steel structure body.

PLC control system and touch screen.

With wheels.

SWT25080M Rapid Bundle Silicone Hose 0.9S Zip Tie Tool
Technical data

Nylon cable ties size: W2.5 * L80mm

Bundle speed: 0.9S

Bundle diameters: 5mm - 10mm

Cable tie gun weight: 6kg

Machine weight: 145kg

Machine voltage: AC220V, 50/60Hz

Cable tie gun voltage: DC24V, switch

Pneumatic pressure: 5kg/cm²

Shipping info

Delivery time: 12-15days

Pack size:

host machine/wooden case,

72 *70*80mm, G.W./N.W.: 110kg/85kg;

Vibration bowl/wooden case,

60*53*70mm, G.W./N.W.: 70kg/54kg;

Advantages

1. Fast - It takes 0.9Second to finish bundling single cable tie. It is about 3times as long as by-hand bundled.

2. Stable - It can be used in production lines. It can meet the production speed.

3. Good material - The machine structure is A3 alloy steel, so is cable tie gun. The working life is about 4 or 5 years.

4. Reduce labor intensity.

Package list

Item Qty
Vibration bowl *1
Host machine *1
Fixe cable tie gun(M) *1
Feeding tube *1
A plastic box *1
An air tube *1
English manual *1
Small tool case *1
Foot pedal *1

Other cable tie guns

Model SWT25080H SWT25080F
Cable tie sizes W2.5*L80mm W2.5 * L80mm
Min bundle diameter 2mm 2mm
Max bundle diameter for wire 14mm 14mm
Max bundle diameter for tube 13mm 13mm
Cable tie gun type handheld cable tie gun Fixed cable tie gun
Voltage AC220V, 50/60Hz AC220V, 50/60Hz
Pneumatic pressure 5kg/cm2 5kg/cm2

FAQ

1. What triggers the activation? Is it a button, a pedal, automatic?

It is a foot pedal. Once worker pedals the pedal, cable ties would be bundled, tightened and cut off.

2. Does the machine produce nylon cable ties?

No, it doesn’t. It is a tool that can automatically bundle nylon cable ties and help you save time.

3. Does the machine use different sizes nylon cable ties?

No, it doesn’t. One machine can deal with a kind of nylon cable ties.

4. Where are the waste cable ties after cut?

They would be collected into a box.
