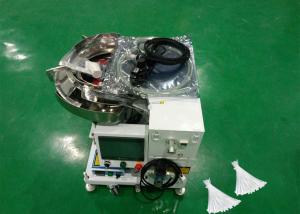

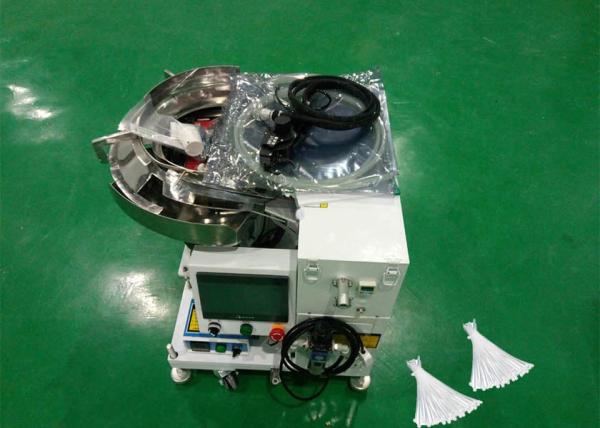

SWT25120H Automatic Cable Tie System, Nylon Cable Tie Gun For Loose Plastic Ties 120mm Length
Fast bundle, improving the work efficiency.
SWT25120H Technical Data
| Product name |
Automatic cable tie tool |
| Model |
SWT25120H |
| Bundle ø Max |
22mm |
| Min. Tensile strength |
8kg |
| Cable tie width |
2.5mm |
| Cable tie length |
120mm |
| Flammability of cable ties |
UL-94-V2 |
| Material of cable ties |
PA 66 |
| Operating temperature |
-30℃ - 80℃ |
| Reach / CE certificate |
Yes |
| Voltage |
AC220V, 50/60Hz |
| Pneumatic pressure |
5kg/cm2 |
SWT25120H advantages
Automatic Cable Tie Machine Features:
1. Small,quick, reliable,,cost effective
2. It’s a must for any cable harness production facility
3. Fully Automatic Cable Tie Machine are customized to your product according to the type and cable tie length and requirements of your application
4. Uing loose cable ties 2.5 *120mm, vibration sorting and feeding.
5. Push the trigger in the gun head then tool automatically wraps, threads tightens and cuts cable ties.
6. The tightening force is adjusted.
7. The bundle speed is up to 0.7S per cable ties.
Packing details
Machine will be packed in wooden cases, totally two cases.
Shipment details
Delivery date: 12days.
By sea, air, dhl/fedex
Payment details
100%TT payment before shipment.
MOQ: 1pcs automatic cable tie tool; 100,000pcs cable ties.
FAQ
| FAQ |
| Q1 . What does cable tie machine consist of? |
It consists of the host machine, the vibration bowl and the gun tool and other parts. |
| Q2 . Can I use other same size cable ties in the machine? |
No, you cann't. The machine asks specific cable ties. We would customize one according to your cable ties. |
| Q3 . What is the min binding Dia of cable tie machine SWT25120H? |
Ø2mm |
| Q4 . What is the warranty? |
1 year warranty and tech support forever. |
